Tide 2.0 Alpha Release

Overview

This table summarizes comparative performance of three de-identification systems applied to a gold-standard corpus of clinical notes across multiple protected health information (PHI) categories. The evaluation dataset was constructed per our PHI labeling guidelines and process: notes were sampled using a random-plus-diversity strategy (modified set cover), pre-labeled by an LLM, reviewed by dual annotators, and adjudicated; only 100% agreement or adjudicated notes were retained as gold standard (see Dataset Description).

Systems include TiDE 1.0, Stanford AIMI v1, and Tide 2.0 Alpha. For each PHI category (e.g., DATE, PATIENT, ID, LOCATION, PHONE, WEB), we report precision and recall; the highest recall per row is highlighted in bold to emphasize sensitivity, which is typically prioritized in biomedical de-identification to minimize PHI leakage risk. Categories with extremely low performance indicate areas requiring methodological refinement or augmented knowledge sources.

PHI Category TiDE 1.0* Stanford AIMI v1 Tide 2.0 Alpha**
Precision / Recall Precision / Recall Precision / Recall
DATE 0.76 / 0.69 0.94 / 0.84 0.94 / 0.97
PATIENT 0.21 / 0.76 0.86 / 0.75 0.89 / 0.83
PHONE 1.00 / 0.79 0.63 / 0.83 0.61 / 0.96
WEB 1.00 / 0.57 0.00 / 0.00 0.66 / 0.82
DOCTOR 0.65 / 0.87 0.45 / 0.87 0.47 / 0.87
ID 0.50 / 0.69 0.59 / 0.87 0.60 / 0.87
LOCATION 0.55 / 0.62 0.14 / 0.75 0.15 / 0.78

* Regex + Stanford CoreNLP 4.5.6 - no known PHI

** Stanford AIMI v1 + Regex + Known PHI

*** Age and Hospital are not shown since the models were not trained for those categories.

Across PHI categories, Tide 2.0 Alpha demonstrates the strongest recall in DATE (0.97), PHONE (0.96), WEB (0.82), and LOCATION (0.78), reflecting improved sensitivity in categories where lexical patterns and contextual cues benefit from hybrid approaches (modeling plus rule-based augmentation and known PHI lists). DATE performance is notably robust across all systems, but the alpha model’s recall edge suggests better coverage of diverse time expressions.

For patient-name related detection (PATIENT), TiDE 1.0 exhibits the highest recall (0.76), while the alpha system attains higher precision (0.89) with slightly lower recall (0.83), indicating a precision–recall trade-off that may be tuned depending on institutional risk tolerance and downstream use. Clinician-name (DOCTOR) and identifier (ID) categories show ties at the highest recall (0.87) across systems, suggesting that current methods are converging in sensitivity; precision differences may therefore drive practical selection depending on false positive tolerance.

Performance variability across categories highlights known challenges in biomedical de-identification. Categories with structured formats (e.g., dates, phone numbers, web URLs) benefit from deterministic pattern recognition, whereas unstructured entities (e.g., names, locations) require stronger contextual modeling and up-to-date dictionaries. The gains observed with Tide 2.0 Alpha are consistent with hybrid strategies that integrate learned representations, regular expressions, and curated PHI inventories.

Dataset used for evaluation

We evaluated systems on a gold-standard labeled corpus of clinical notes developed via a structured process documented in the following internal reports:

  • PHI Labeling Guidelines: defines PHI categories, inclusion/exclusion criteria, and annotation rules with representative examples and edge-case guidance.
  • PHI Labeling Process: details the sampling strategy (random plus diversity via a modified set-cover), pre-annotation with LLMs, dual-annotator workflow, and adjudication protocol.
  • PHI Labeling Report: characterizes the labeled sample versus the broader STARR-OMOP corpus (age, sex, race, ethnicity, note types, length distributions) and summarizes PHI entity distributions.

The dataset comprises a stratified sample of clinical notes selected to maximize coverage of demographic and textual characteristics. Notes were pre-labeled by a large language model, then independently reviewed by two annotators following the published guidelines; disagreements were adjudicated and only 100% agreement or adjudicated notes were retained as gold standard. The corpus includes diverse PHI entity types (e.g., DATE, PATIENT, ID, LOCATION, PHONE, WEB), facilitating robust estimation of precision/recall across both structured and contextual categories. For full methodological details and population characteristics, see the referenced documents above.

Stanford AIMI de-identifier model summary

The Stanford AIMI de-identifier v2 (stanford-deidentifier-v2) is a transformer-based token classification model fine-tuned on large-scale multi-institutional radiology corpora for PHI detection. This model is used as the primary transformer-based recognizer in Tide 2.0.

  • Architecture: PubMedBERT-based encoder fine-tuned for token-level PHI classification. Inputs are chunked with overlap to handle long clinical documents while respecting the 512-token limit.
  • Training corpus: Large annotated radiology corpora from Stanford University spanning multiple modalities—chest X-ray reports, chest CT reports, abdomen/pelvis CT reports, and brain MR reports—with validation on University of Pennsylvania datasets. The AGE category was added as a new PHI entity type in v2.
  • Performance: Achieves F1 scores of 0.996 on Stanford test set and 0.973 on Penn external validation. On synthetic Penn reports, the model achieves F1 of 0.960, significantly outperforming commercial cloud vendor systems (F1 range: 0.632–0.754).
  • Key improvements over v1: Added AGE category support, large-scale multimodal training for improved cross-institutional generalization, and enhanced robustness across different clinical text sources.
  • Model card: Available on Hugging Face at StanfordAIMI/stanford-deidentifier-v2. Associated paper: arXiv:2511.04079.

TiDE 1.0 summary

TiDE 1.0 (Text DEidentification) is an in-house, open-source clinical text de-identification pipeline designed for HIPAA Safe Harbor–oriented PHI scrubbing at large scale, while preserving note formatting for downstream NLP.

  • Hybrid recognizers: CoreNLP-based NER (CRFClassifier) for names and locations (eg, street/city/state/ZIP), regex patterns and enumerated rules for structured identifiers (MRN, SSN, email, IP, URL, phone).
  • Surrogate replacement (Hiding in Plain Sight): Detected PHI spans (eg, names, addresses, dates) are replaced with realistic synthetic surrogates built from public sources (eg, census, HRSA, FDA, SSA, CMS), making residual PHI harder to re-identify while maintaining usability.
  • Sensitivity prioritized: The pipeline emphasizes recall to minimize PHI leakage; outputs are currently classified by Stanford UPO as High Risk due to small residual PHI risk, with DRA/Expert Determination used for additional mitigation when needed.
  • Operational scale: Demonstrated throughput ≈100M notes in ~7 hours using distributed dataflow workers (~0.00025s/note).

Detailed Description: Tide 2.0 Alpha

Introduction

Clinical text de-identification requires both high recall—to minimize protected health information (PHI) leakage—and preservation of data utility for downstream research. Existing approaches present trade-offs: rule-based systems miss contextual patterns, machine learning models struggle with rare or institution-specific identifiers, and large language models (LLMs) introduce latency and cost at scale. Tide 2.0 addresses these limitations through a multi-strategy recognition architecture combined with hidden-in-plain-sight anonymization—producing de-identified text that preserves format, ensures consistency within and across patient records, and maintains longitudinal coherence for cohort studies and temporal analyses.

The system builds on TiDE 1.0’s operational foundation while integrating transformer-based named entity recognition, LLM-augmented detection for complex patterns, and high-performance deterministic recognizers. Crucially, anonymization moves beyond simple redaction: identifiers are replaced with realistic surrogates that preserve structural characteristics (e.g., phone number format, name casing) while remaining cryptographically consistent per patient across all documents.

Dataset

Tide 2.0 was evaluated on the same gold-standard corpus described in Dataset Used for Evaluation. This corpus comprises clinical notes sampled via a random-plus-diversity strategy from STARR-OMOP, pre-labeled by an LLM, independently reviewed by dual annotators, and adjudicated to retain only 100% agreement or resolved notes. The evaluation spans structured PHI categories (DATE, PHONE, ID) and contextual categories (PATIENT, DOCTOR, LOCATION), enabling assessment of both pattern-based and semantic recognition capabilities.

Methods

Multi-Strategy Entity Recognition

Tide 2.0 employs an ensemble of complementary recognition strategies, each targeting specific failure modes:

  1. Transformer-based NER: The Stanford AIMI de-identifier v2 model provides contextual detection of names, locations, dates, ages, and identifiers. The model uses chunking with overlap to handle long documents without truncation loss, achieving F1 scores of 0.996 on internal validation.

  2. LLM-Augmented Recognition: For complex, ambiguous patterns—multi-format addresses, informal name mentions, embedded identifiers—structured JSON prompting elicits precise entity extraction from large language models. Multi-provider support (Google Vertex AI, OpenAI, Anthropic) enables flexibility across deployment contexts.

  3. High-Performance Pattern Recognizers: Optimized regex-based recognizers detect structured PHI with significant speedups over baseline implementations: phone numbers (59× faster), URLs and IP addresses (35× faster), SSNs (10–20× faster), accession numbers (23× faster), and genetic sequences. These recognizers prioritize precision on well-defined formats.

  4. Patient-Specific Known Values: An Aho-Corasick automaton enables O(n) multi-pattern matching against institutional identifier vaults, achieving 50–100× speedup over regex-based lookups. This captures patient-specific MRNs, names, addresses, and encounter identifiers with high confidence.

Hidden-in-Plain-Sight Anonymization

De-identified text should resemble authentic clinical notes—not redacted placeholders. Tide 2.0 implements privacy-preserving transformations that maintain data structure and enable longitudinal analysis:

  1. Format-Preserving Encryption (FPE): Using the FF3 algorithm, identifiers are transformed while retaining their original format. A phone number (650) 723-4000 becomes (408) 291-7823, not [PHONE]. Transformations are deterministic: the same identifier consistently maps to the same surrogate.

  2. Longitudinal Consistency: Per-patient cryptographic keys ensure that surrogates remain stable across all documents for an individual. This enables cohort construction, temporal trend analysis, and record linkage on de-identified data without re-identification risk.

  3. Semantic Replacement: Names are replaced with realistic alternatives that preserve format and case (SMITH, JOHN → CHEN, DAVID). Date shifting uses HMAC-derived per-patient offsets (minimum ±3 days per HIPAA Safe Harbor) while preserving inter-event intervals within a patient’s record.

Example: End-to-End De-identification

The following example demonstrates actual pipeline output on a synthetic clinical note, showing how multiple recognizers collaborate to detect PHI followed by format-preserving anonymization.

Legend:

PERSON/PATIENT HCW/DOCTOR DATE AGE ID/MRN SSN PHONE EMAIL LOCATION HOSPITAL URL

Original Text (with detected entities):

Patient: Maria Santos, DOB: 03/15/1962 MRN: 12345678 | SSN: 123-45-6789 Phone: (650) 723-4000 | Email: msantos@email.com

Seen at Stanford Cancer Center, 875 Blake Wilbur Dr, Palo Alto, CA 94304 Provider: Dr. James Wilson, MD

Assessment: 62 y/o female with breast cancer. Maria reports mild fatigue. Follow-up scheduled 04/22/2025. Contact oncology coordinator Sarah at x4521 for questions. Visit our portal at https://mychart.stanford.edu for results.
Anonymized Output (with transformations):

Patient: Elena Beegan, DOB: 04/14/1962 MRN: 33027468 | SSN: 928-50-8413 Phone: (717) 794-7071 | Email: sparksjennifer@example.net

Seen at 23915 Ugly Creek Trl, South Charleston Village, CA 98377 Provider: Dr. Kamauri Syrop, MD

Assessment: 62 y/o female with breast cancer. Elena reports mild fatigue. Follow-up scheduled 05/22/2025. Contact oncology coordinator Kaiden at 5jDOv for questions. Visit our portal at https://fisher-diaz.com/ for results.
Entity Transformation Summary:
Original → Anonymized Type
Maria Santos → Elena Beegan PERSON
Maria → Elena PATIENT
03/15/1962 → 04/14/1962 DATE
12345678 → 33027468 MRN
123-45-6789 → 928-50-8413 US_SSN
  1. 723-4000
→
  1. 794-7071
PHONE
msantos@email.com → sparksjennifer@example.net EMAIL
875 Blake Wilbur Dr, Palo Alto, CA 94304 → 23915 Ugly Creek Trl, South Charleston Village, CA 98377 LOCATION
Dr. James Wilson, MD → Dr. Kamauri Syrop, MD HCW
04/22/2025 → 05/22/2025 DATE
Sarah → Kaiden HCW
x4521 → 5jDOv PHONE
https://mychart.stanford.edu → https://fisher-diaz.com/ URL

Key observations:

  • Longitudinal name consistency: Patient full name Maria Santos → Elena Beegan and first-name-only mention Maria → Elena are replaced with matching surrogates, ensuring consistency across all references to the same individual
  • Semantic name replacement: Provider James Wilson → Kamauri Syrop, coordinator Sarah → Kaiden — all replaced with realistic alternatives preserving name structure
  • Format-preserving encryption: Phone (650) 723-4000 → (717) 794-7071 retains format; MRN 12345678 → 33027468 maintains 8 digits; SSN 123-45-6789 → 928-50-8413 preserves XXX-XX-XXXX structure
  • Address anonymization: Full address 875 Blake Wilbur Dr, Palo Alto, CA 94304 → 23915 Ugly Creek Trl, South Charleston Village, CA 98377 maintains US address format with realistic surrogate
  • Date shifting: All dates shifted by the same patient-specific offset (+30 days): 03/15/1962 → 04/14/1962 and 04/22/2025 → 05/22/2025, preserving temporal intervals
  • Multi-recognizer fusion: Entities detected by multiple recognizers (Transformer NER + KnownValues + Pattern) with highest-confidence detection used for anonymization
  • Clinical utility: The note remains readable and structurally identical to the original, supporting downstream NLP tasks

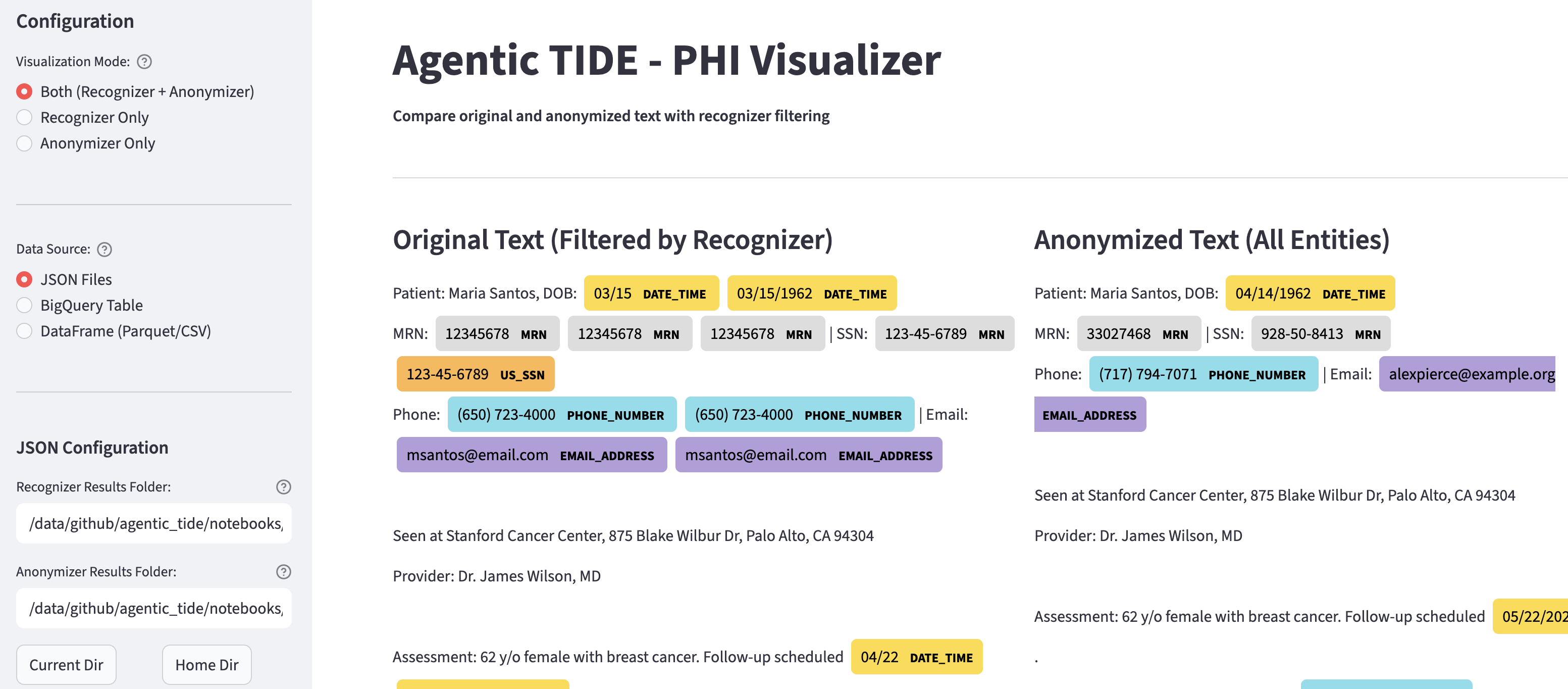

Interactive Visualizer

Tide includes a Streamlit-based visualization interface designed for quality control of the de-identification process. The visualizer enables reviewers to verify that PHI detection and anonymization are performing correctly, facilitating rapid identification of false negatives (missed PHI) or false positives (over-redaction) before data release.

Tide Visualizer Interface

Key quality control capabilities include:

  • Side-by-side comparison: Original text with highlighted entities alongside the anonymized version, enabling rapid visual verification of transformations
  • Entity filtering: Filter by recognizer type (Transformer, LLM, Pattern-based, KnownValues) or entity category to audit specific detection sources
  • Confidence scores: Review detection confidence for each entity span to prioritize manual review of uncertain classifications
  • Multiple data sources: Load results from JSON files, Parquet/CSV DataFrames, or BigQuery tables for batch quality assessment

Future Directions

Ongoing development focuses on integration with agentic AI workflows. Planned capabilities include Model Context Protocol (MCP) support, enabling LLM-based agents to invoke de-identification as a tool within broader clinical data processing pipelines. This will facilitate real-time, context-aware anonymization in conversational and agentic applications.

Results

PHI Category OpenAI GPT-4 gemini-2.5-flash gemini-2.5-flash-lite openai/gpt-oss-20b-maas openai/gpt-oss-120b-maas
Precision / Recall Precision / Recall Precision / Recall Precision / Recall Precision / Recall
AGE 0.969 / 0.504 0.797 / 0.896 0.789 / 0.875 0.878 / 0.820 0.866 / 0.828
DATE 0.894 / 0.887 0.988 / 0.987 0.986 / 0.950 0.981 / 0.964 0.983 / 0.942
DOCTOR 0.979 / 0.711 0.948 / 0.967 0.950 / 0.921 0.950 / 0.856 0.955 / 0.867
HOSPITAL 0.929 / 0.716 0.585 / 0.854 0.650 / 0.812 0.682 / 0.713 0.698 / 0.752
ID 0.828 / 0.787 0.915 / 0.946 0.962 / 0.883 0.925 / 0.867 0.931 / 0.823
LOCATION 0.800 / 0.879 0.852 / 0.697 0.826 / 0.683 0.735 / 0.701 0.899 / 0.612
PATIENT 0.694 / 0.772 0.954 / 0.943 0.927 / 0.894 0.892 / 0.833 0.918 / 0.851
PHONE 0.969 / 0.831 0.978 / 0.937 0.974 / 0.950 0.966 / 0.923 0.980 / 0.921
WEB 0.837 / 0.878 1.000 / 0.817 1.000 / 0.780 0.985 / 0.817 0.985 / 0.793

References

  • Stanford AIMI de-identifier v2: https://huggingface.co/StanfordAIMI/stanford-deidentifier-v2
  • “Improving the Performance of Radiology Report De-identification with Large-Scale Training and Benchmarking Against Cloud Vendor Methods,” arXiv 2024: https://arxiv.org/abs/2511.04079
  • Stanford AIMI de-identifier v1: https://huggingface.co/StanfordAIMI/stanford-deidentifier-base
  • “Automated deidentification of radiology reports combining transformer and ‘hide in plain sight’ rule-based methods,” JAMIA 2022 (PMCID: PMC9846681): https://pmc.ncbi.nlm.nih.gov/articles/PMC9846681/
  • TiDE clinical text Safe Harbor — https://starr.stanford.edu/methods/tide-clinical-text-safe-harbor
